CAM-KIT1
Universal Kamera / Monitor Kit mit Full-HD NTSC/PAL Kamera, mit Hilfslinien und Infrarot
Inkl. 7" TFT Monitor
Einheit: Kit.CHF 167.00 inkl. 8.1 MWST
Description

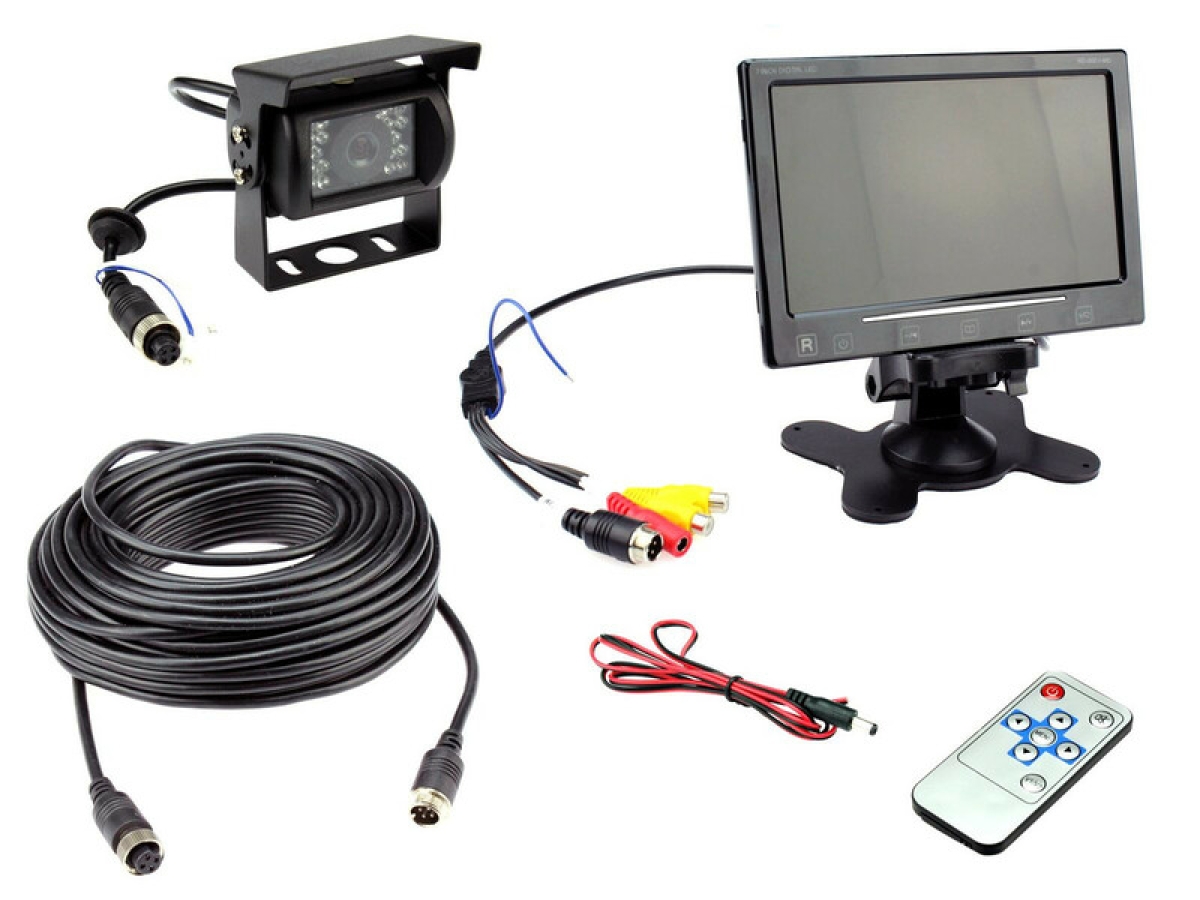

The CAM-KIT1 is a universal bracket mounted camera kit specially designed for use on a wide range of camper vans. Boasting a 7” Colour display with soft touch buttons, a reversing camera with a 1/3” HD CCD image sensor and 800 x 480 resolution and a waterproof rating of IP68 meaning the camera will survive almost everything the weather can throw at it.
Product Specifications:

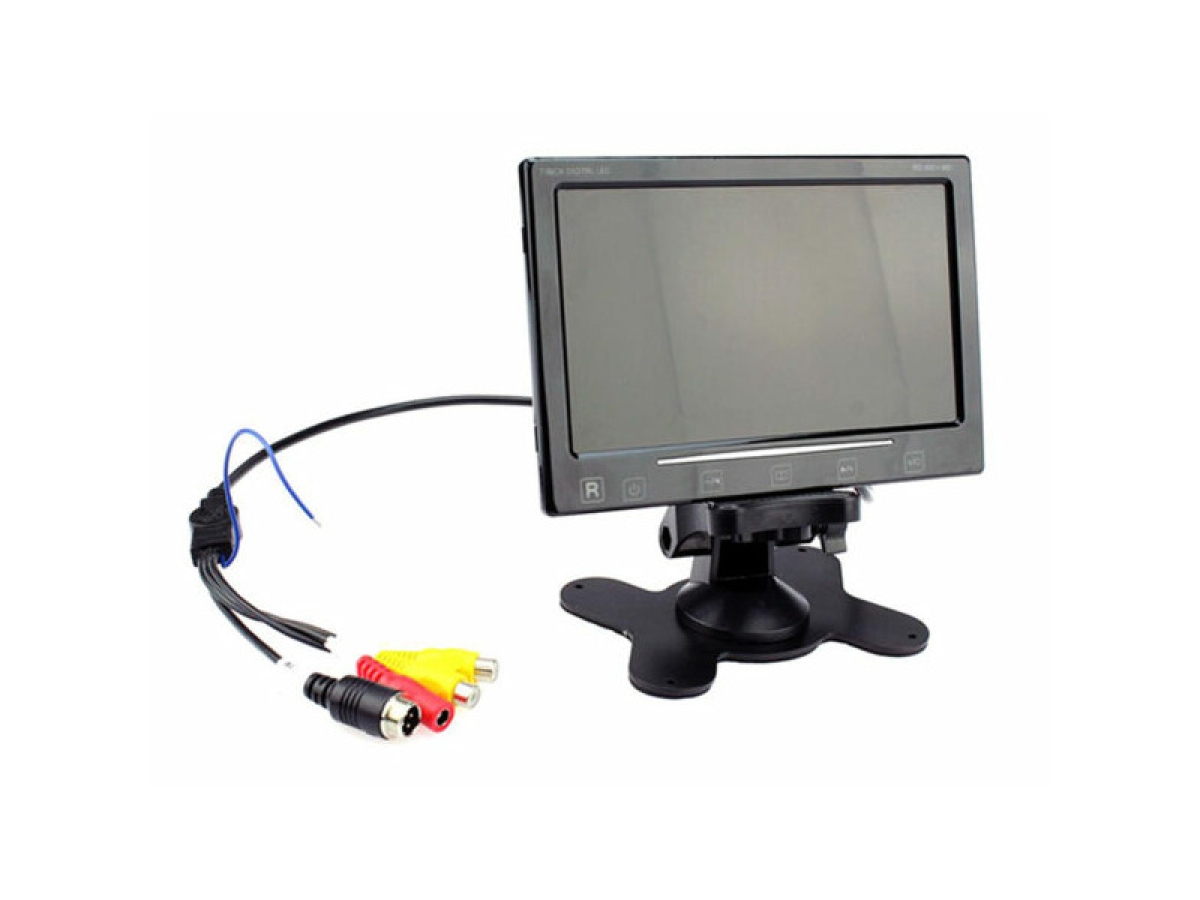

Display Screen: 7” TFT colour display with soft touch buttons, speaker and remote
control
Inputs: 3 (2x video inputs & 1x 4pin camera input with auto switching function)
Image: 800 x 480
TV System: NTSC/PAL
Operating Voltage: 12-32V DC (Negative Ground)
Current Consumption: 360mA @ 13.8V (Including Camera)
Stand-by Current: 100mA @ 13.8V
Operating Temperature: -10 Degrees C to +65 Degrees C
Monitor Image Adjustment: Yes (Mirror/Normal/Inverted & Inverted Mirror)
Auto Switching Input: Yes
Screen menus include brightness, contrast, colour, hue, language, volume, input
& image adjustments

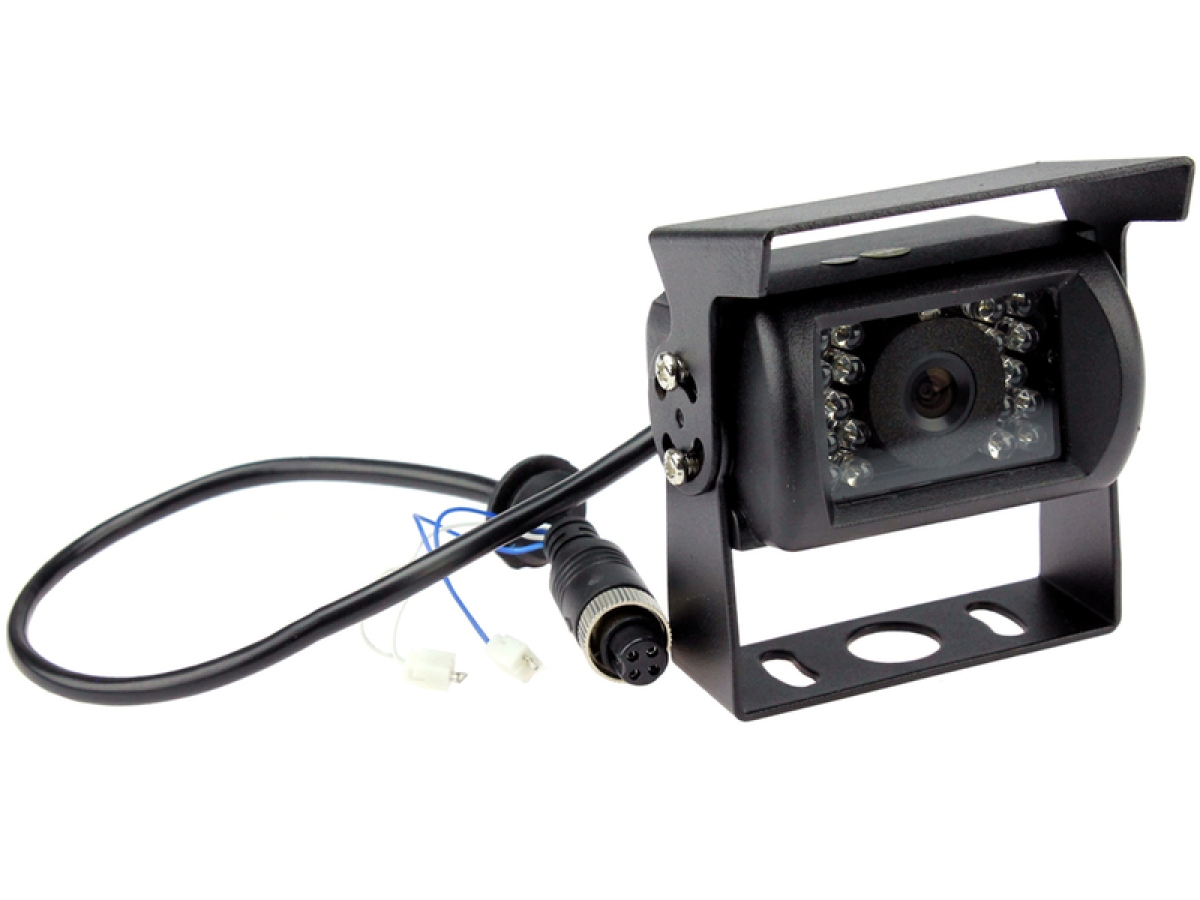

Camera Image Sensor: 1/3” HD CCD
TV System: PAL/NTSC
TV Lines: 560
Sensitivity: 0 Lux (LED’s on)
Video Output: 1.0V p-p 75ohm
Waterproof Rating: IP68
Parking Lines: Yes
Removable Lines: Yes
Image Adjustment: Yes (Mirror/Normal)
Spezifikationen
| Artikel Hersteller |
Connects2
|
