CAM-24
Universal PAL Aufbau-Kamera mit Hilfslinien
Anzeige: Gespiegelt / Normal
Einheit: Stk.CHF 66.00 inkl. 8.1 MWST
Description

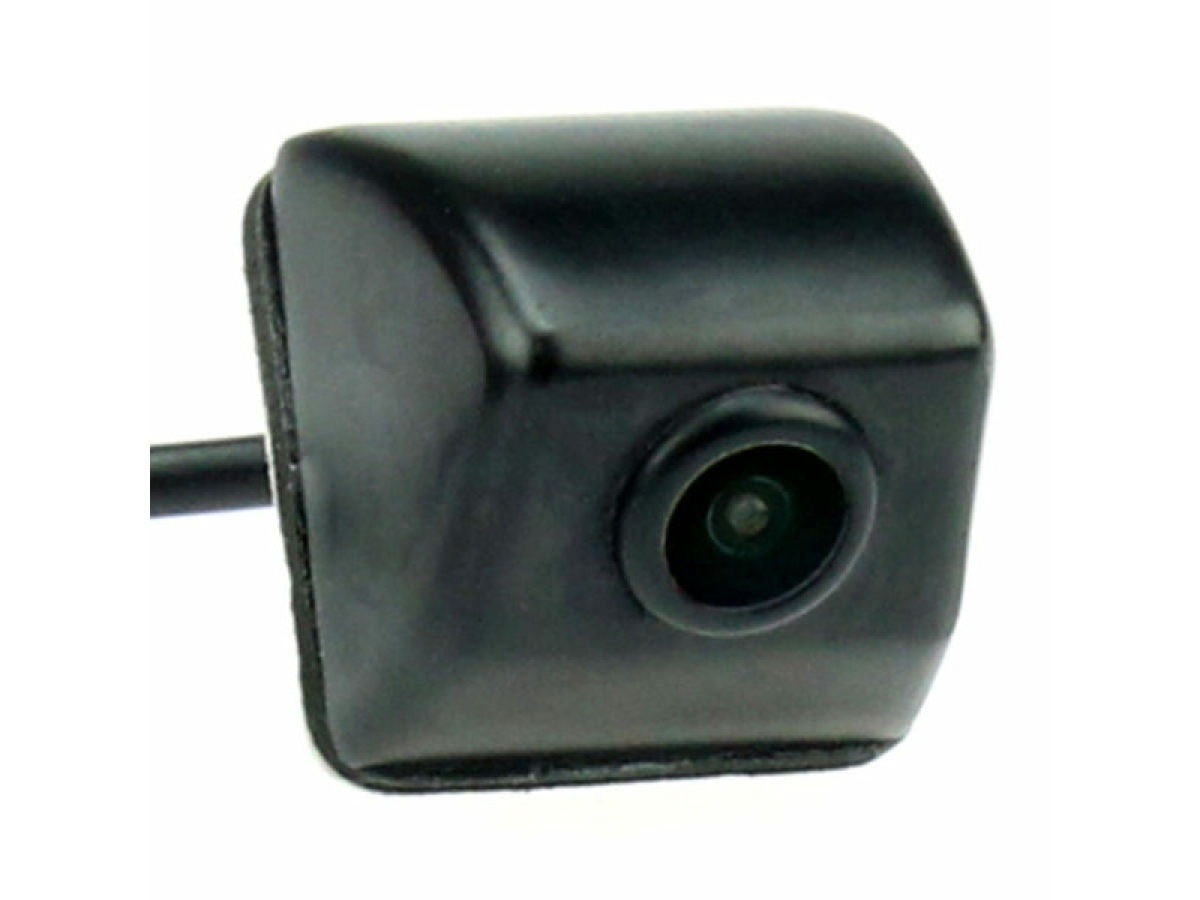

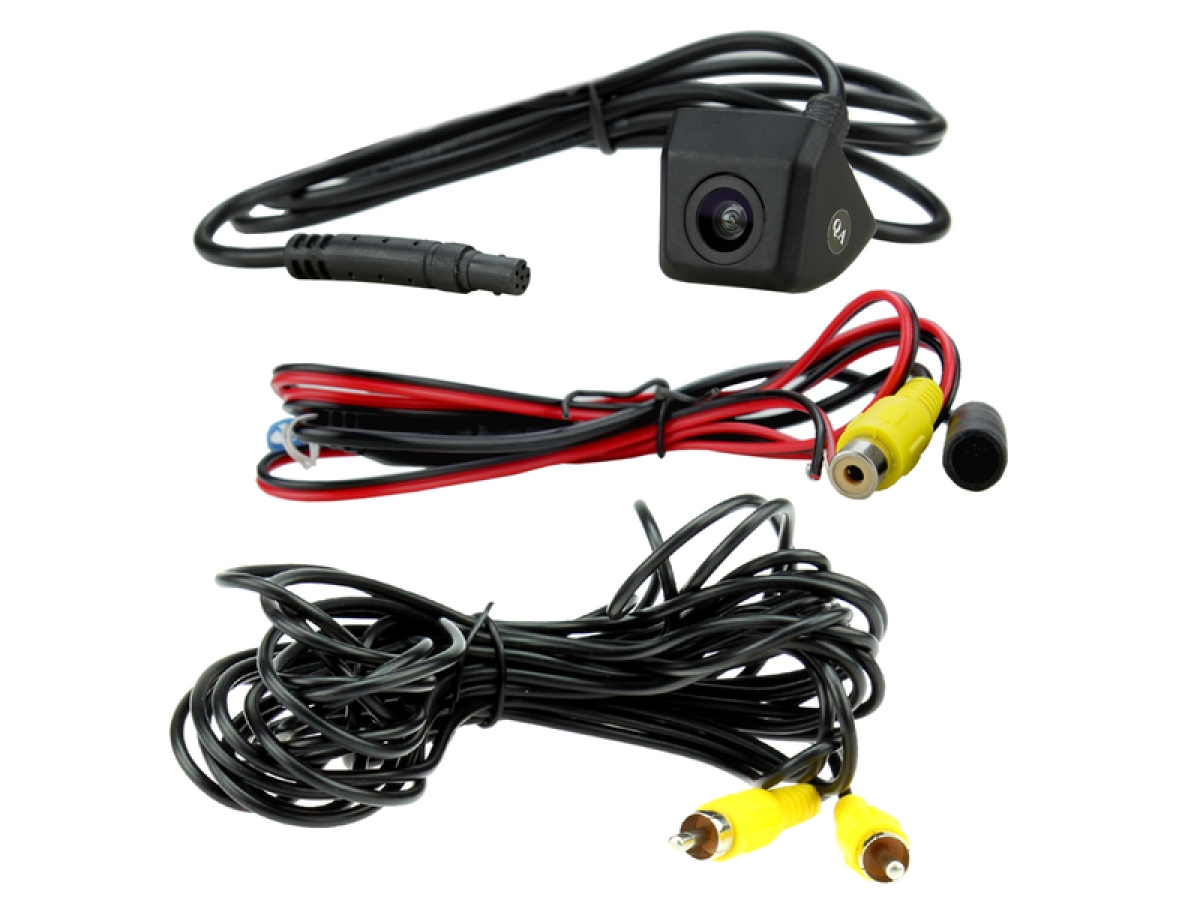

The CAM-24 is a universal surface fixed angle mounted reversing camera, compatible with a wide range of vehicles both cars and vans. Minimal illumination is required for the camera to operate with a 170 degree viewing angle. This easy-fit rear view camera’s 1099 HD CCD, 480 TV Lines and 976x496pix resolution allow for a full-colour high-res image display. The CAM-24 is also IP68 rated, meaning it is protected against all standard weather conditions and will continue to operate in temperatures ranging from -20 degrees C to +70 degrees C.
Product Specifications:
Image Sensor: 1099 HD CCD
TV Lines: 560
Resolution: 976 x 496
Minimum Illumination: 0.1 Lux
TV System: PAL
Waterproof Rating: IP68
Horizontal Angle: 170 Degrees
Vertical Angle: 120 Degrees
Parking Lines: Yes (Removable)
Image Adjustment: Yes (Mirror/Normal)
Enhanced Performance In Low Light: Yes
Video Output: 1.0V p-p 75ohm
Operating Voltage: 12V DC (Negative Ground)
Current Consumption: 145mA @ 13.8V
Operating Temperature: -20 Degrees C to +70 Degrees C
Vehicle Application
Universal, fits on cars and vans
Spezifikationen
| Artikel Hersteller |
Connects2
|
