CAM-18
Universal NTSC Aufbau-Kamera mit Hilfslinien
Anzeige: Gespiegelt / Normal
Einheit: Stk.CHF 66.00 inkl. 8.1 MWST
Description

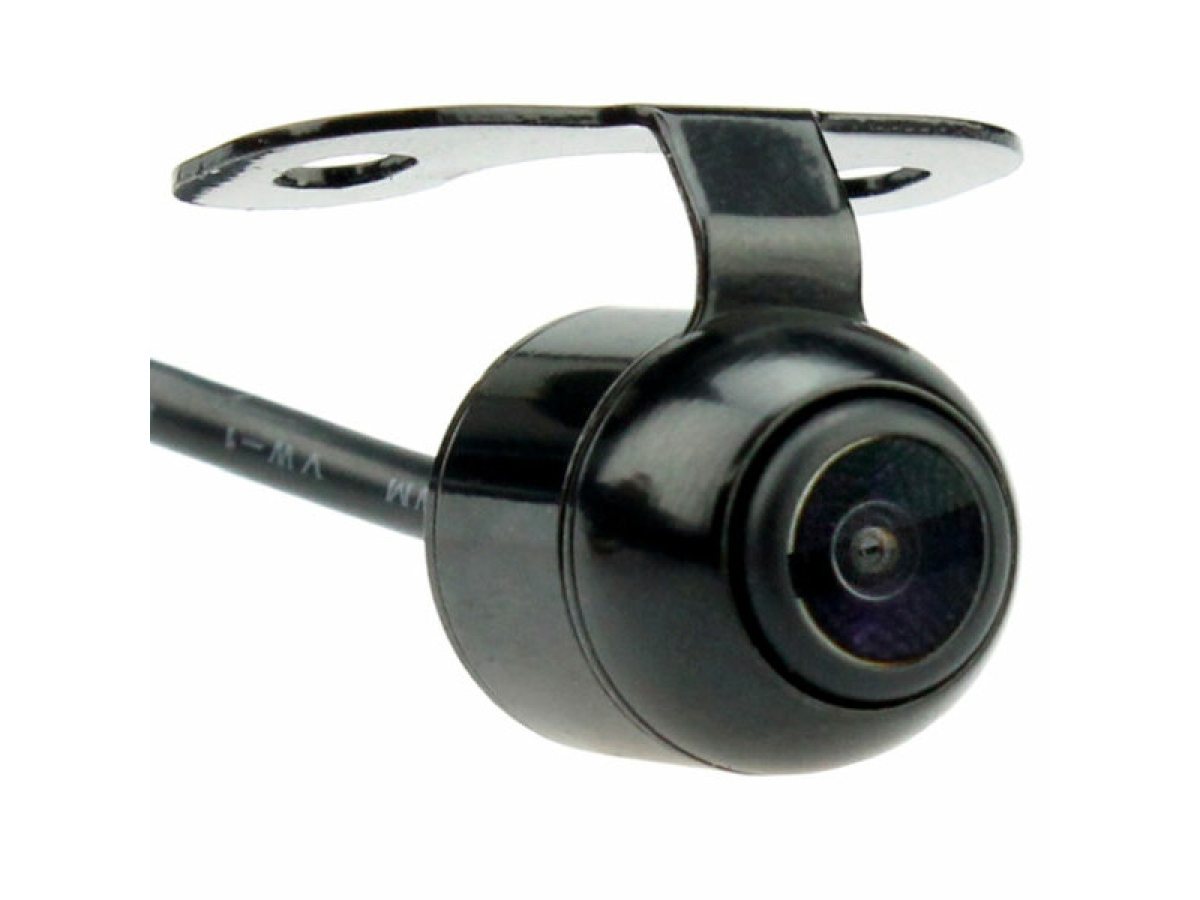

The CAM-18 is a universal surface-mounted reversing camera that is equipped with a horizontal metal bracket. Boasting an HD 1099 CCD sensor, 480 TV Lines and a 976×496 resolution the camera provides a full colour high-res image to the driver. The CAM-18 is IP68 rated and performs well in both good and bad weather conditions and will continue to operate in temperatures ranging from -20 degrees C to +70 degrees C.
Product Specifications:
Image Sensor: 1099 HD CCD
TV Lines: 560
Resolution: 976 x 496
Minimum Illumination: 0.1 Lux
TV System: NTSC
Waterproof Rating: IP68
Horizontal Angle: 170 Degrees
Vertical Angle: 120 Degrees
Parking Lines: Yes (Removable)
Image Adjustment: Yes (Mirror/Normal)
Enhanced Performance In Low Light: Yes
Video Output: 1.0V p-p 75ohm
Operating Voltage: 12V DC (Negative Ground)
Current Consumption: 115mA @ 13.8V
Operating Temperature: -20 Degrees C to +70 Degrees C
Vehicle Application:
Universal, Cars and Vans
Spezifikationen
| Artikel Hersteller |
Connects2
|
