CAM-11
Universal NTSC Aufbau-Kamera mit Hilfslinien
Einheit: Stk.CHF 92.00 inkl. 8.1 MWST
Description

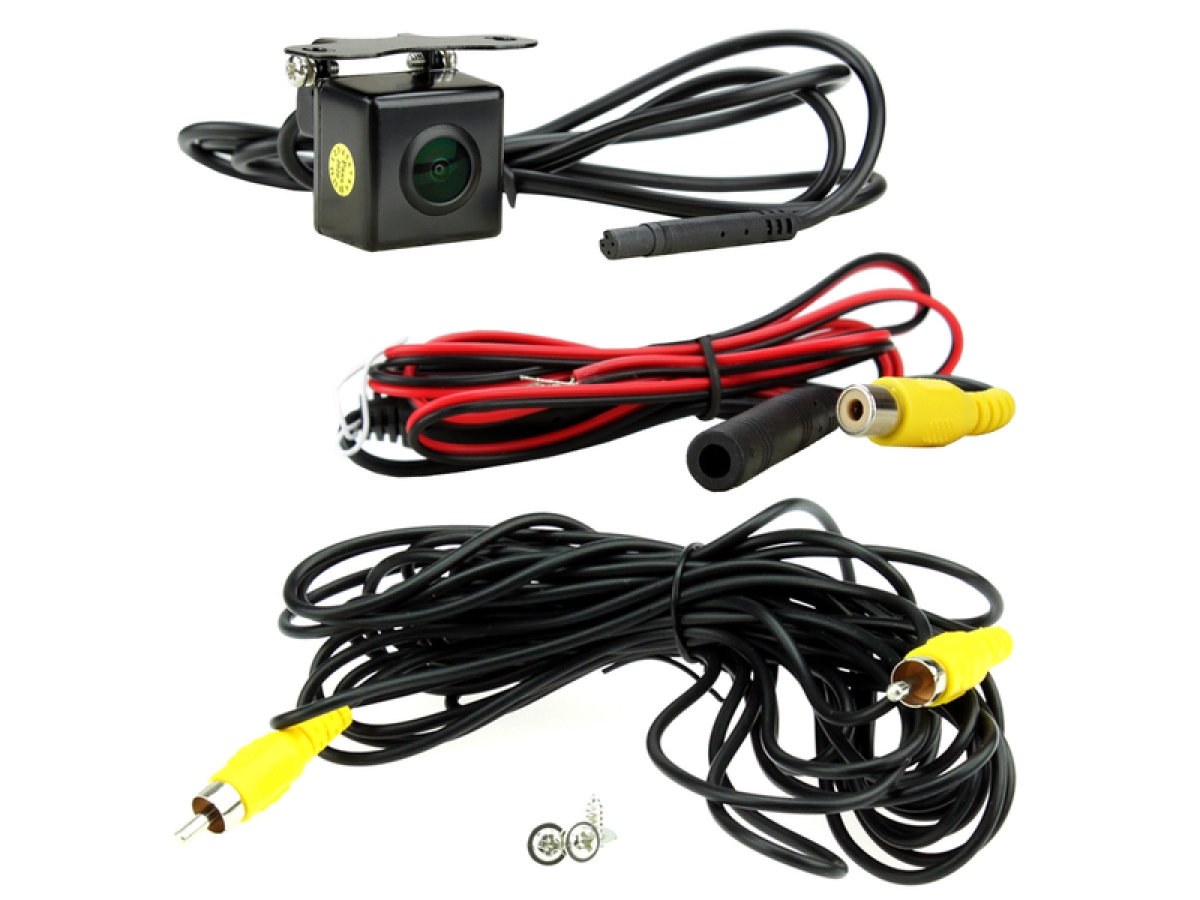

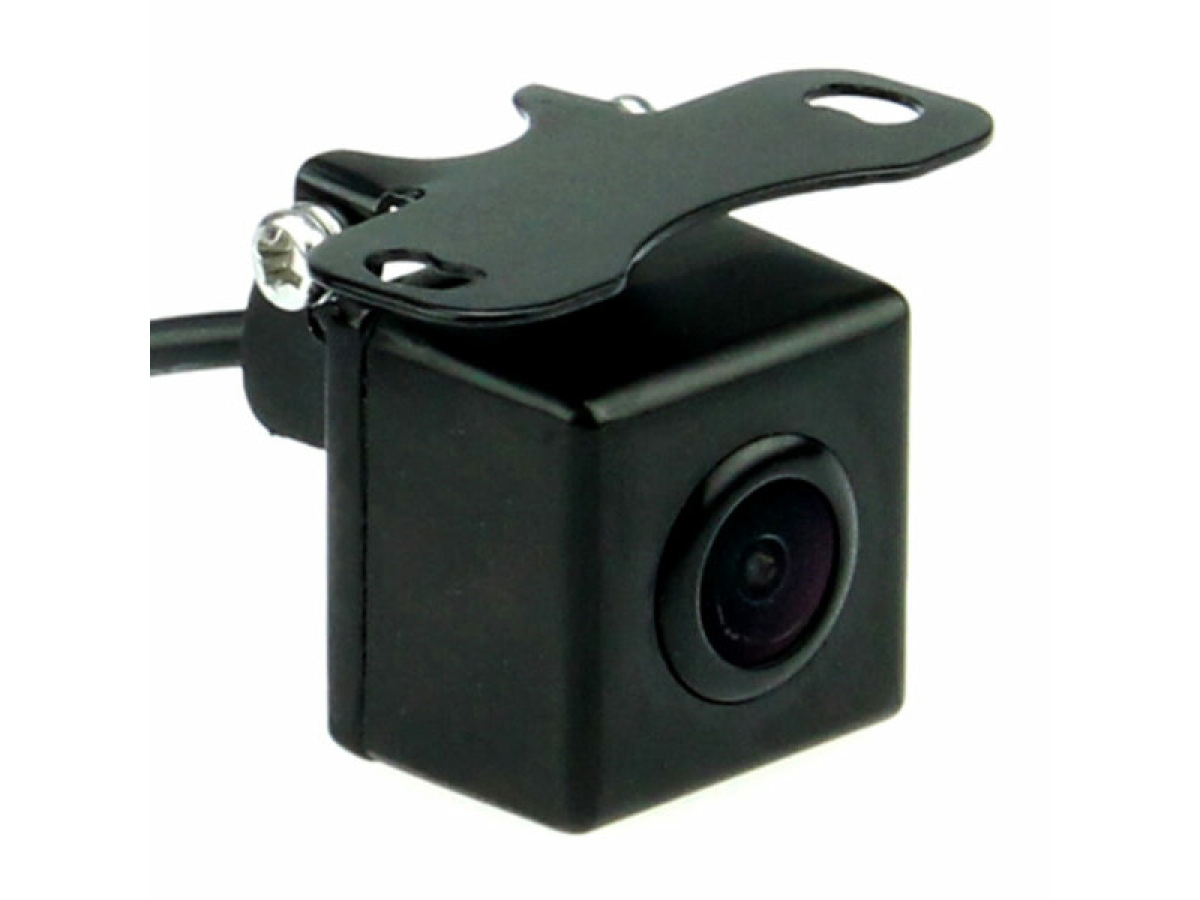

The CAM-11 is a surface mounted vertically adjustable reversing camera for fitment in most cars and vans. Featuring a 1099 HD CCD image sensor, 480 TV lines and 976 x 496 pix resolution the camera gives the driver a clear full colour high res image of their surroundings. The CAM-11 also features removable parking lines to further assist the driver in manoeuvres. The CAM-11 has been IP68 rated, meaning it is protected against all standard weather conditions and will continue to operate in temperatures ranging from -20 degrees C to +70 degrees C.
Product Specifications:
Image Sensor: 1099 HD CCD
TV Lines: 560
Resolution: 976 x 496
Minimum Illumination: 0.1 Lux
TV System: NTSC
Waterproof Rating: IP68
Horizontal Angle: 170 Degrees
Vertical Angle: 120 Degrees
Parking Lines: Yes – Tracking Lines (Removable)
Enhanced Performance In Low Light: Yes
Video Output: 1.0V p-p 75ohm
Operating Voltage: 12V DC (Negative Ground)
Current Consumption: 40mA @ 13.8V
Operating temperature: -20 Degrees C to +70 Degrees C
Vehicle Application:
Universal, Cars and Vans
Spezifikationen
| Artikel Hersteller |
Connects2
|
