Fahrzeugspezifische Adaptionen
ACV 13-1190-52-1
Verfügbarkeit:
ab Lager
Der Artikel ist innerhalb eines Arbeitstages ab Zahlungseingang versandfertig.

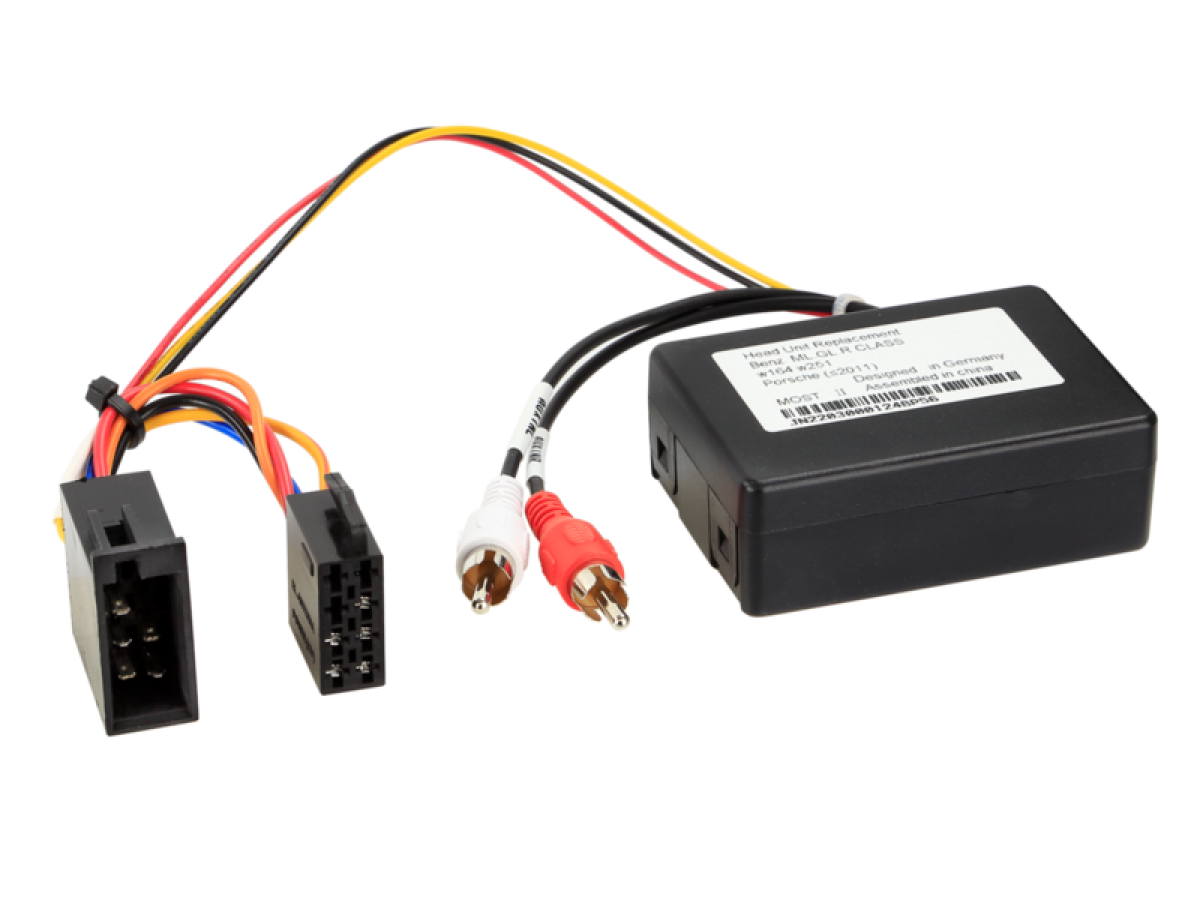

Active system adapter Mercedes/Porsche MOST>RCA ISO
Einheit: Stk.CHF 315.00 inkl. 8.1 MWST
Hinweis: Bitte überprüfen Sie die Gegebenheiten des Artikels mit jenen des Fahrzeuges um sicherzustellen das der Artikel passend ist.
Active system adapter Mercedes / Porsche
Active system adapters maintain the function of an OEM amplified system.
This allows the connection of an aftermarket HU to an OEM amplified system while retaining the OEM amplifier and connected speakers by adapting, matching or converting the output signals of the signal source to the signal input of the OEM amplifier.
Depending on the vehicle and the installed OEM amplified system, various functions such as fader, sound or subwoofer settings might be lost.
In individual cases, depending on the OEM system and the retrofit radio, increased noise or a switch-on or switch-off noise may occur.
Note:
connector: OEM amplified system MOST > RCA(m) red/white
connector: loose wires
vehicles with MOST25 OEM amplified system
Mercedes:
vehicles with Audio 50 Comand NTG2 / NTG2.5 OEM Sat Nav
vehicles with 40 Pin Quadlock connector
vehicles SL-class (R230) 04/2008 - 12/2011 > NTG2.5 Sat Nav compatible
vehicles SL-class (R230) 03/2006 - 02/2008 > NTG 2.0 not compatible
vehicles without Comand 2.0 / 2.5 OEM Sat Nav
vehicles without D2B Optical Bus
Porsche:
vehicles with CDR24 / CDR30 / CDR31 OEM HU
vehicles with PCM2.0 / PCM2.1 / PCM3.0 / PCM3.1 OEM OEM Sat Nav
vehicles with PCM4.0 Sat Nav:
Active system adapter Porsche PCM4.0 OEM HU MOST>RCA > item: 13-1323-50
vehicles 986 / 911 / 996 without YAZAKI Optical Bus System
Connection:
yellow: +12V current power clamp 30
black: GND clamp 31
red: +12V switched ignition clamp 15 / Amp remote / antenna remote
RCA > front preamp output retrofit HU
fader not supported
OEM devices > CD-Changer / TV-Tuner / Phone Modul must be bypassed from the MOST ringsystem
Fibre optic connector MOST-ring > item: 771000-2100
Fibre optic loop(f) MOST-ring > item: 771000-2001
Vehicle applications:
Mercedes
Mercedes A-class (W169) 10/2004 - 04/2012
Mercedes A-class (C169) 11/2004 - 07/2011
Mercedes B-class (T245) 6/2005 - 06/2011
Mercedes C-class (W203) 02/2004 - 09/2007
Mercedes GL-class (X164) 09/2006 - 05/2009
Mercedes GL-class (X164) 05/2009 - 07/2012
Mercedes M-class (W164) 07/2005 - 04/2008
Mercedes M-class (W164) 10/2008 - 07/2011
Mercedes ML (W164) 07/2005 - 04/2008
Mercedes ML (W164) 10/2008 - 07/2011
Mercedes R-class (W251) 09/2005 - 05/2007
Mercedes R-class (W251) 05/2007 - 05/2010
Mercedes SL-class (R230) 04/2008 - 12/2011
Porsche
Porsche 911 (997) 07/2004 - 08/2009
Porsche 911 (977) 08/2008 - 05/2013
Porsche 911 (991) 12/2011 - 01/2017
Porsche Boxster (987) 10/2004 - 01/2009
Porsche Cayenne (9PA/955) 09/2002 - 12/2006
Porsche Cayenne (9PA/955) 02/2007 - 02/2010
Porsche Cayenne (92A/958) 05/2010 - 12/2017
Porsche Cayman (987C) 11/2005 - 01/2008
Porsche Macan (95B) 04/2014 - 08/2018
Porsche Panamera (970) 09/2009 - 07/2016
Active system adapters maintain the function of an OEM amplified system.
This allows the connection of an aftermarket HU to an OEM amplified system while retaining the OEM amplifier and connected speakers by adapting, matching or converting the output signals of the signal source to the signal input of the OEM amplifier.
Depending on the vehicle and the installed OEM amplified system, various functions such as fader, sound or subwoofer settings might be lost.
In individual cases, depending on the OEM system and the retrofit radio, increased noise or a switch-on or switch-off noise may occur.
Note:
connector: OEM amplified system MOST > RCA(m) red/white
connector: loose wires
vehicles with MOST25 OEM amplified system
Mercedes:
vehicles with Audio 50 Comand NTG2 / NTG2.5 OEM Sat Nav
vehicles with 40 Pin Quadlock connector
vehicles SL-class (R230) 04/2008 - 12/2011 > NTG2.5 Sat Nav compatible
vehicles SL-class (R230) 03/2006 - 02/2008 > NTG 2.0 not compatible
vehicles without Comand 2.0 / 2.5 OEM Sat Nav
vehicles without D2B Optical Bus
Porsche:
vehicles with CDR24 / CDR30 / CDR31 OEM HU
vehicles with PCM2.0 / PCM2.1 / PCM3.0 / PCM3.1 OEM OEM Sat Nav
vehicles with PCM4.0 Sat Nav:
Active system adapter Porsche PCM4.0 OEM HU MOST>RCA > item: 13-1323-50
vehicles 986 / 911 / 996 without YAZAKI Optical Bus System
Connection:
yellow: +12V current power clamp 30
black: GND clamp 31
red: +12V switched ignition clamp 15 / Amp remote / antenna remote
RCA > front preamp output retrofit HU
fader not supported
OEM devices > CD-Changer / TV-Tuner / Phone Modul must be bypassed from the MOST ringsystem
Fibre optic connector MOST-ring > item: 771000-2100
Fibre optic loop(f) MOST-ring > item: 771000-2001
Vehicle applications:
Mercedes
Mercedes A-class (W169) 10/2004 - 04/2012
Mercedes A-class (C169) 11/2004 - 07/2011
Mercedes B-class (T245) 6/2005 - 06/2011
Mercedes C-class (W203) 02/2004 - 09/2007
Mercedes GL-class (X164) 09/2006 - 05/2009
Mercedes GL-class (X164) 05/2009 - 07/2012
Mercedes M-class (W164) 07/2005 - 04/2008
Mercedes M-class (W164) 10/2008 - 07/2011
Mercedes ML (W164) 07/2005 - 04/2008
Mercedes ML (W164) 10/2008 - 07/2011
Mercedes R-class (W251) 09/2005 - 05/2007
Mercedes R-class (W251) 05/2007 - 05/2010
Mercedes SL-class (R230) 04/2008 - 12/2011
Porsche
Porsche 911 (997) 07/2004 - 08/2009
Porsche 911 (977) 08/2008 - 05/2013
Porsche 911 (991) 12/2011 - 01/2017
Porsche Boxster (987) 10/2004 - 01/2009
Porsche Cayenne (9PA/955) 09/2002 - 12/2006
Porsche Cayenne (9PA/955) 02/2007 - 02/2010
Porsche Cayenne (92A/958) 05/2010 - 12/2017
Porsche Cayman (987C) 11/2005 - 01/2008
Porsche Macan (95B) 04/2014 - 08/2018
Porsche Panamera (970) 09/2009 - 07/2016
Spezifikationen
| Artikel Hersteller |
ACV
|
