Fahrzeugspezifische Pick-Up Kamera zu MAZDA BT-50 Bj. 2012 > 2016
Fahrzeugspezifische Pick-Up NTSC/PAL Griffleisten-Kamera zu Mazda
Modell: BT-50 12>16
Einheit: Stk.CHF 184.00 inkl. 8.1 MWST
| Make | Model | Model Note | Years | Headunit | Connector |
|---|---|---|---|---|---|
| Mazda | BT-50 | 2012 – 2016 | For Vehicles with 7″ Connect Systems | N/A |
Description

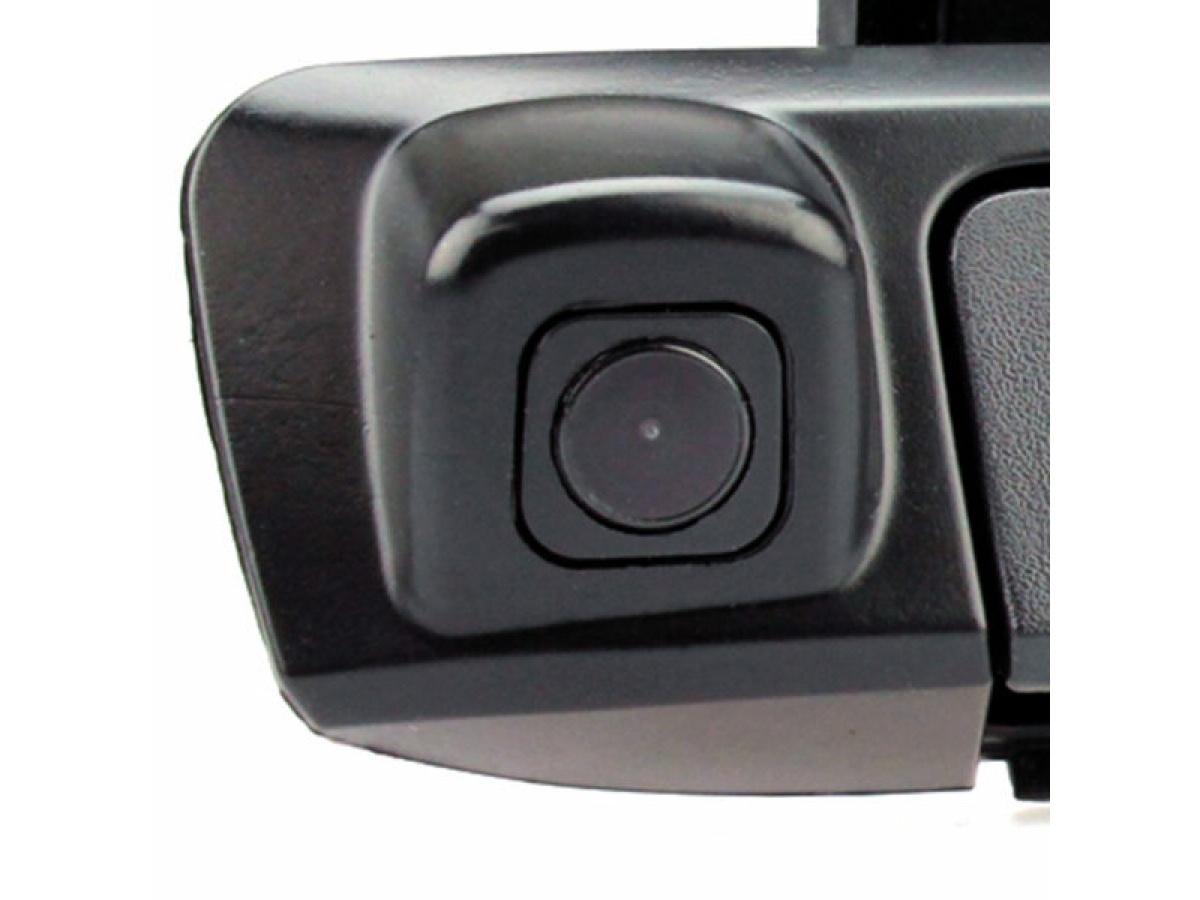

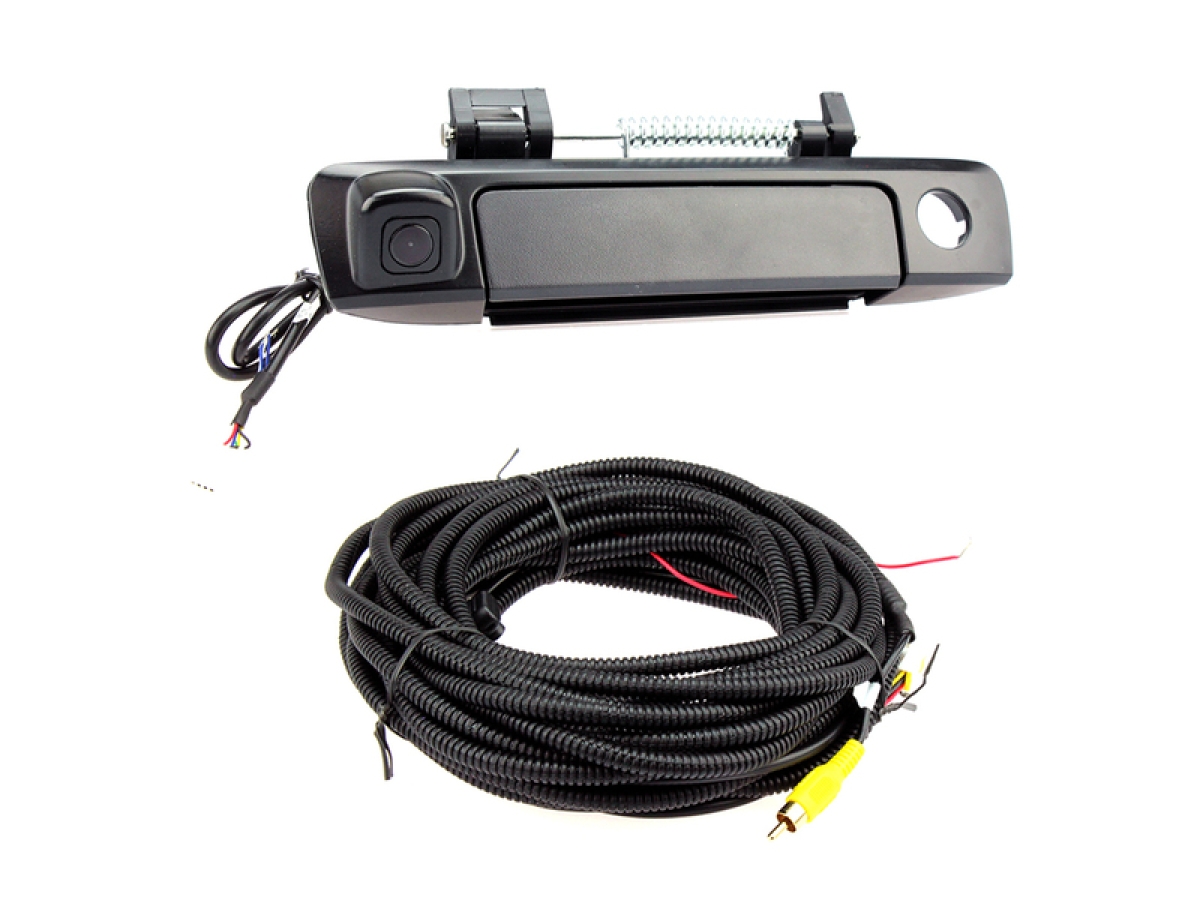

The CAM-MZ4 is a Replacement Boot Handle Reverse Camera for the 2012 to 2016 Mazda BT-50. The unit replaces the vehicles original boot handle with a camera built into the housing. The CAM-MZ4 features a CMOS image sensor, 640 x 480 resolution and 170 degree viewing angle, this combination not only adds visual safety to the rear of the vehicle but also keeps the original aesthetics.
Product Specifications:
CMOS Image Sensor
640 x 480 Resolution
Max Relative Aperture: 2.2 (+/- 5%)
Fixed Iris
Lens Construction: 3 elements + 1 IR filter
Field Of View: D = 168 Degrees, H = 136 Degrees, V = 100 Degrees
Hard/Anti-Fog/IR-Cut Coating
NTSC/PAL Compatible
Video Output: 1.0V p-p 75ohm
Minimum Illumination: 0.1 Lux
Parking Lines Displayed
Operating Voltage: 12V DC (Negative Ground)
Current Consumption: 33mA @ 13.8V
Operating Temperature: -20 Degrees C to +70 Degrees C
Enhanced Performance In Low Light
Waterproof Rating: IP68
Vehicle Application:
2012-16 Mazda BT-50
Spezifikationen
| Fahrzeug Hersteller |
MAZDA BT-50
|
